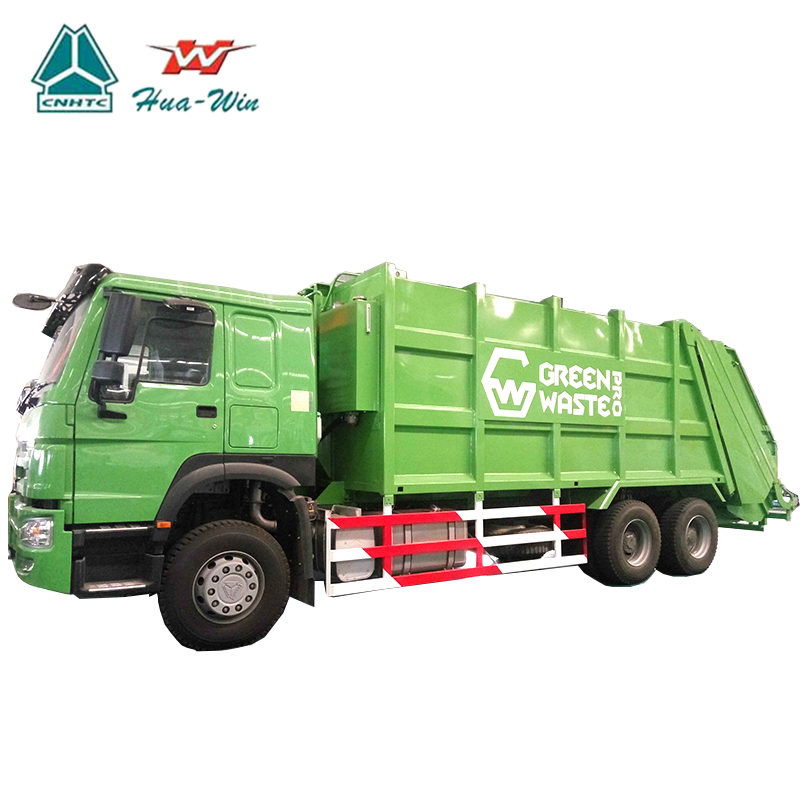

SINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorry

Hubei Zhongzhong Huawei import and Export Co., Ltd
Contact Now

SINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorry

  • 1
  • 2

Condition : New

Drive Wheel : 6x4

Type : Compactor

Transmission Type : Manual

Emission Standard : Euro 2

Fuel Type : Diesel

Engine Capacity : 9.726L

Size : 11160*2500*3600

Gross Vehicle Weight : 17350

Place of Origin : Hubei, China

Brand Name : sinotruk

Model Number : garbage truck

After-sales Service Provided : Overseas service center available

Volume : > 15000L

Certification : ISO9001

Product name : junk truck compactor

Chassis Brand : sinotruk HOWO

Driving Type : LHD/ RHD

Name : trash compactor truck

Warranty : 12 Months

Truck type : Compactor Rear Loader Recycling Roll

Engine type : HOWO engine

Engine power : 336hp-371hp

Color : Request Customized

Engine : sinotruk engine

Packaging Details : nude pack

Port : china main port

Supply Ability : 30 Unit/Units per Month

Price : $75,000.00 - $96,000.00/Units

Contact Now

SINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorry

SINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorry

Product details

Specification

(1) 6x4 trash truck, 24CBM capacity
(2) 3 Axle, double diff, hub reduction, heavy duty

(3) Euro II emission.
(4) Horse Power 371HP
(5) Displacement: 9.726L

(6) Certification: ISO9001 CCC,SGS

SINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorry

Technical parameters

Cabin

Driving type 6*4 LHD/RHD

Model ZZ

HW76, 1bed, AC

Overall Size(mm) 11160*2500*3600
Bin capacity(mm) 24CBM
Wheel base(mm) 4600+1350
GVW(kg) 25000
Front axle loading capacity(kg) 1*9000
Rear axle loading capacity(kg) 2*16000
Engine Brand Sinotruk
Model WD615.47
Type 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Displacement 9.726L
Bore*Stroke 126*130mm
Hose Power(HP) 371HP
Emission standard Euro 2
Max speed 82km/h
Tire 12.0-20, 12.00R20, 295/80R22.5, 12R22.5, 315/80R22.5 optional
Transmission HW19710 transmission, 10 forward and 2 reverse
Steering ZF81188
Oil tank 400L Aluminum alloy fuel tank
Brake system

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Electrics

Operating voltage:24V,negative grounded

Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light

Options

Vertical Muffler;

ABS;

Automatic Break Clearance Adjusting Arm;

Traveling Data;

ZF Gearbox

PTO

ADR

SINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorrySINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorry
SINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorrySINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorry
SINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorrySINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorry
Our Services

SINOTRUK compactor garbage truck 24cbm dustcart heavy duty bin wagon bin lorryWarranty

1. For Road truck:

One year quality guarantee for three key parts axles, engine, transmission or within

100000km, which comes the first.

For Off road truck & engineering truck:

Within 6 months or terminates 60,000 km, whichever is reached first.

Same timetable as to three key parts axles, chassis and land gear for road truck and off road truck seperately.

2. Other spare part could be supplied by OEM at cost prices.

3. Regularly callback to know the vehicle's working status.

4. The overseas engineers are always ready to deal with unexpected needs.

Maintenance

1.Check Check the oil pan, injection pump, oil bath air filter,oil in the power output gearbox, if the oil level rises regularly

2. Check the cooling water level in the tank, if the water is not enough,please add the water to the standard level. When the temperature is below + 5oC,the engine if off work,please discharge the water.(when there is no antifreeze fluid)

3. Check and tighten bolts and nuts out of the engine, excluding oil leaks, water leaks, air leaks.

4. When working in dusty places, remove dust on the air filter. And,replace the air filter when necessary.

5. Clear dirt , dust and oil on the surface of engine.

6. Listening to the voice when diesel engine is running, observing the color of exhausted air, exclude the problem and irregularities found.

7. Replace engine oil,clean oil pan and oil strainer,oil filter tank, repalce the oil in the injection pump, according detailed manual.

Our advantage

Factory

We have own factory and skilled worker, rich experienced design team and responsible QC and good after sales service

Quality and Price

Products Quality Certification SGS CCC ISO. And ensure high quality of your required products. Also we manage to control the cost and save every penny for your party.

Special

We can provide various kinds of special truck and trailer, various machinery for your choices. Also, we can customize per your specific requirements.

Experience

More than 20 years' experience as a manufacturer

Overseas branch
Oversea wareshouse with more than 100000 US dollors spare parts in stock, Oversea office with more than 15 professional engineers to help local customers
