Condition : New
Horsepower : 351 - 450hp
Emission Standard : Euro 2
Brand Name : SINOTRUK HOWO
Model Number : ZZ3317N3867N1
Place of Origin : Shandong, China
Fuel Type : Diesel
Engine Capacity : > 8L
Transmission Type : Manual
Dimensions (L x W x H) (mm) : 10660x2496x3450(mm)
Gross Vehicle Weight : 31000
Capacity (Load) : 31 - 40T
Drive Wheel : 8X4
Engine : WD615.47 , 371HP( Euro II)
Hydraulic system : front lift
Wheel base : 1800+3500+1350(mm)
Front Axle : 1xHF9 ( 9 Tons)
Driving Axle : HC16, 16Tons
Cabin : A7-W lengthened cab(with one sleeper)
Rim/ Tire : 11.00R20,12.00R20,12.00R24 Radial tire
Transmission : HW19710(10 forwards & 2 reverses)
Cargo body : 7800x2300x1500(mm)
Color : White, red, green, golden and so on.
Packaging Details : In nude
Port : China main port
Supply Ability : 500 Unit/Units per Month
Price : $39,999.00 - $55,999.00/Units
Description
This type product , with features of reliable structure , high loading capacity which can load 30-60 tons,strong power from 266HP to 420HP,reliable performance and wide acceplication.This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.

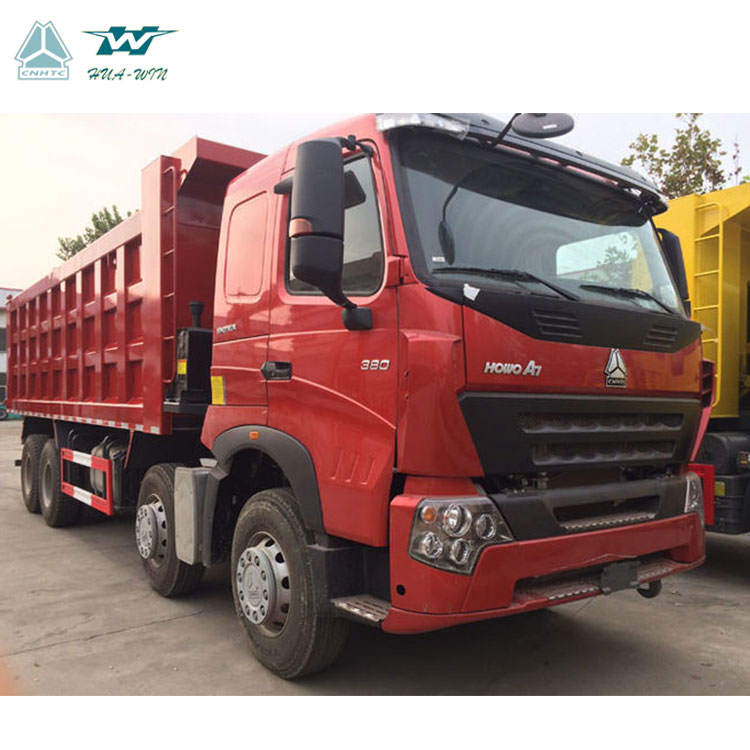

Sinotruk howo 12 wheeler 8x4 sand tipper truck | |
Model | ZZ3317N3867N1 |
Drive Type | 8×4 |
Engine | WD615.47 , 371HP( Euro II) 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine Displacement : 9.726L |
Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) |
Transmission | HW19710(10 forwards & 2 reverses) |
Front Axle | 1×HF9 ( 9 Tons) |
Driving Axle | HC16, 16Tons |
Steering | ZF8118 hydraulic steering with power assistance. |
Clutch | Single-plate dry coil spring clutch, diameter 430mm, hydraulically operating with air assistance |
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
Wheel base | 1800+3500+1350(mm) |
Overall dimension | 10660×2496×3450(mm) |
Cargo body | 7800×2300×1500(mm),Bottom:8mm, Side:6mm |
The curb weight | 15300(Kg) |
Gross weight | 31000 kg |
Max. speed | 75km/h |
Color | White, red, green, golden and so on. |
Competitive Advantage:
1)advanced cargo body structure , light weight , high rigidity , hight loading capacity
2)Using the high strength steel,it has long service life
3)Optimized the sealing structure has the better sealing effect.
4)The advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
5)Multiple box structures and device selections
Packing & Shipping Advantage
1. Package can be different according to the customers' requirement: in nude, or by SKD (semi knock down), or by CKD(totally knock down). After vehicles arrive in destination, we will send the assembly guidance to assure the quality, if it is necessary, we will send our technicien to help you assemble vehicle.
2. Having the professional team for loading trucks in container by the most economic loading method. (3 units per 40 HQ at most)
3.Cooperating with most of the international shipping company to assure vehicles arrive in the destination successfully with the lowest freight cost.
Shipping company Cooperator:
Professional service:
1. Before the shipment, we give you the list of spare parts to assure you can purchase the relative spare parts in your country, and you may purchase the origional spare parts from us with lowest price.
2. Engine, axle and the tranmission enjoy one year or 80 000km warranty.
3. In Tanzania; and kenya, we have our working office to help you ASAP.
![]() |
Sinotruk howo 12 wheeler 8x4 sand tipper truck for sale in dubai Images |
