SINOTRUK HOWO 4x2 mobile workshop truck

Hubei Zhongzhong Huawei import and Export Co., Ltd
Contact Now

SINOTRUK HOWO 4x2 mobile workshop truck

Condition : New

Transmission Type : Manual

Emission Standard : Euro 2

Fuel Type : Diesel

Dimensions (L x W x H) (mm) : 8500*2500*3100

Gross Vehicle Weight : 9000

Place of Origin : Hubei, China

Brand Name : sinotruk huawin

Model Number : SZG

Name : workshop truck

Color : Customer's Requirement

Driving type : 4*2

Warranty : 1 Year

Wheelbase : 4700mm

Cab : Long.short

Engine : CY4102-C3F

Drive Wheel : 4*2 4*4 6*2 6*4 6*6

Chassis brand : sinotruk howo

Certificate : ce

Packaging Details : NUDE

Port : SHANGHAI

Supply Ability : 30 Unit/Units per Month

Price : $37,000.00/Units >=1 Units

Contact Now

SINOTRUK HOWO 4x2 mobile workshop truck

SINOTRUK HOWO 4x2 mobile workshop truck

Product details

Specification

(1) 4x2 mobile workshop truck, 12tons
(2) 2 Axle, with engine, maintainance equipment and tools

(3) Euro II emission.
(4) Horse Power 160HP
(5) Displacement: 4.257L

(6) Working platform: 2m
(7) Certification: ISO9001 CCC,SGS

SINOTRUK HOWO 4x2 mobile workshop truckSINOTRUK HOWO 4x2 mobile workshop truck

SINOTRUK HOWO 4x2 mobile workshop truck

Technical parameters

Cabin

Driving type 4*2 LHD/RHD

Model ZZ

2080mm cabin, 1bed, AC

Overall Size(mm) 8500*2500*2850
Platform Size(mm) 1100X570X1000mm
Wheel base(mm) 5200
GVW(kg) 12000
Front axle loading capacity(kg) 1*3800
Rear axle loading capacity(kg) 2*10500
Engine Brand YuChai
Model YC4E160-33
Type Diesel, 4-cylinder in-line with water cooling,
turbo-charging and inter-cooling
Displacement 4.257L
Bore*Stroke 102*118mm
Hose Power(HP) 160HP
Emission standard Euro 2
Max speed 72km/h
Tire 9.00R20 radial tires ,7pcs including 1 spare tire
Transmission DC6J65TC gear box, with 6 forward and 1 reverse
Steering power steering
Oil tank 220L Aluminum alloy fuel tank
Brake system

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Electrics

Operating voltage:24V,negative grounded

Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light

Options

Vertical Muffler;

ABS;

Automatic Break Clearance Adjusting Arm;

Traveling Data;

ZF Gearbox

PTO

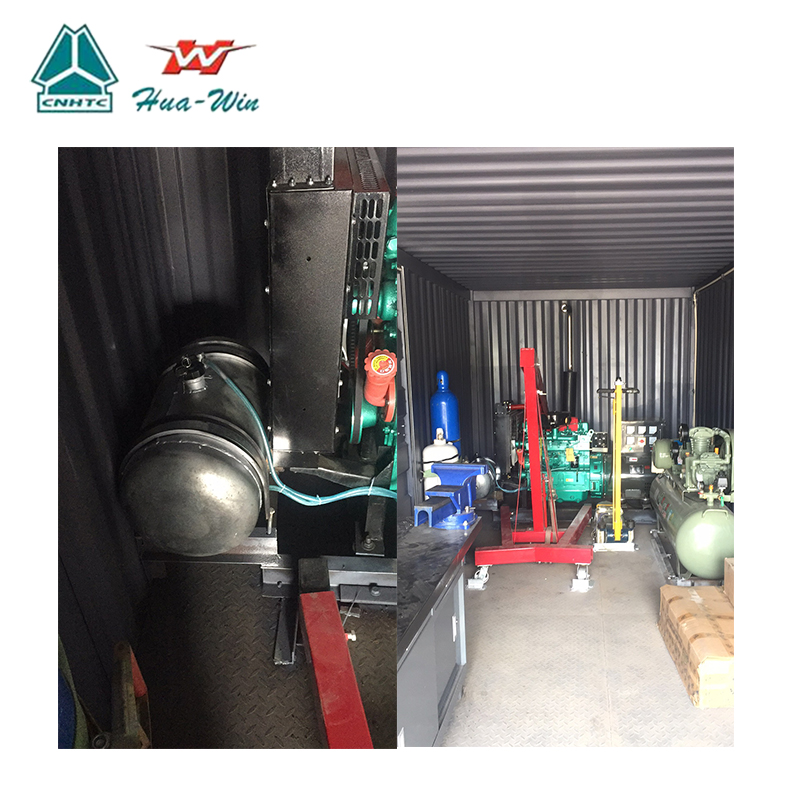

Tool list

SINOTRUK HOWO 4x2 mobile workshop truck

SINOTRUK HOWO 4x2 mobile workshop truckSINOTRUK HOWO 4x2 mobile workshop truck
SINOTRUK HOWO 4x2 mobile workshop truckSINOTRUK HOWO 4x2 mobile workshop truck
Our Services

SINOTRUK HOWO 4x2 mobile workshop truckWarranty

1. For Road truck:

One year quality guarantee for three key parts axles, engine, transmission or within

100000km, which comes the first.

For Off road truck & engineering truck:

Within 6 months or terminates 60,000 km, whichever is reached first.

Same timetable as to three key parts axles, chassis and land gear for road truck and off road truck seperately.

2. Other spare part could be supplied by OEM at cost prices.

3. Regularly callback to know the vehicle's working status.

4. The overseas engineers are always ready to deal with unexpected needs.

Maintenance

1.Check Check the oil pan, injection pump, oil bath air filter,oil in the power output gearbox, if the oil level rises regularly

2. Check the cooling water level in the tank, if the water is not enough,please add the water to the standard level. When the temperature is below + 5oC,the engine if off work,please discharge the water.(when there is no antifreeze fluid)

3. Check and tighten bolts and nuts out of the engine, excluding oil leaks, water leaks, air leaks.

4. When working in dusty places, remove dust on the air filter. And,replace the air filter when necessary.

5. Clear dirt , dust and oil on the surface of engine.

6. Listening to the voice when diesel engine is running, observing the color of exhausted air, exclude the problem and irregularities found.

7. Replace engine oil,clean oil pan and oil strainer,oil filter tank, repalce the oil in the injection pump, according detailed manual.

Our advantage

Factory

We have own factory and skilled worker, rich experienced design team and responsible QC and good after sales service

Quality and Price

Products Quality Certification SGS CCC ISO. And ensure high quality of your required products. Also we manage to control the cost and save every penny for your party.

Special

We can provide various kinds of special truck and trailer, various machinery for your choices. Also, we can customize per your specific requirements.

Experience

More than 20 years' experience as a manufacturer

Overseas branch
Oversea wareshouse with more than 100000 US dollors spare parts in stock, Oversea office with more than 15 professional engineers to help local customers

Packaging & Shipping

SINOTRUK HOWO 4x2 mobile workshop truck

Company Information

SINOTRUK HOWO 4x2 mobile workshop truck

Contact

SINOTRUK HOWO 4x2 mobile workshop truckIF THIS IS NOT WHAT YOU WANT, CLICK HERE TO VIEW MORE TRUCKS AND TRAILERS, OR CONTACT US AS FOLLOW:

Contact Person: Aaron Luo

Mobile/whatsapp: +86 130 7275 1191 (CHINA)

+255 763 770 080 (TANZANIA)

+260 975 000 088 (ZAMBIA)

+63 939 643 3100 (PHILIPINES)

Tel:+86 27 8556 4089 Fax:+86 27 8556 4189

Skype: luoyuanlai21120115

Facebook: Yuanlai Luo

Wechat: aaron0701
